Triton Bike Rack

$559.00

Available Galvanized (G) or Powder Coated (P) as in-ground (-IG), portable (-FS), or surface mount (-SF). Please specify mount type.

Item NumberPortableIn-GroundSurface
5 Bike Capacity
TRI-5-G$ 669$ 559$ 629
TRI-5-P$ 669$ 559$ 629
7 Bike Capacity
TRI-7-G$ 929$ 839$ 889
TRI-7-P$ 929$ 839$ 889
10 Bike Capacity
TRI-10-G$ 1,219$ 1,129$ 1,179
TRI-10-P$ 1,219$ 1,129$ 1,179
14 Bike Capacity
TRI-14-G$ 1,569$ 1,469$ 1,529
TRI-14-P$ 1,569$ 1,469$ 1,529

Triton Spec Sheet

SKU: TRI Categories: , Tags: ,

Description

Description

The Triton™ bike rack offers a new dimension to bicycle parking. The addition of triangle-shaped locking bars give bike owners added security – enabling bikes to be secured by frame and wheel with a single “U”-type lock. Bike owners instinctively understand how to park at the Triton™ bike rack. Bicycles can be parked on both sides of the triangle for maximum capacity in a smaller space. The versatile Triton™ bike rack accepts all types of bikes, including tricycles, tandems, and trailers and is perfect for parks, bike trails, schools, and more!

Finishes

Triton™ Bicycle Racks are available in Galvanized or Powder Coated finishes

Measurements

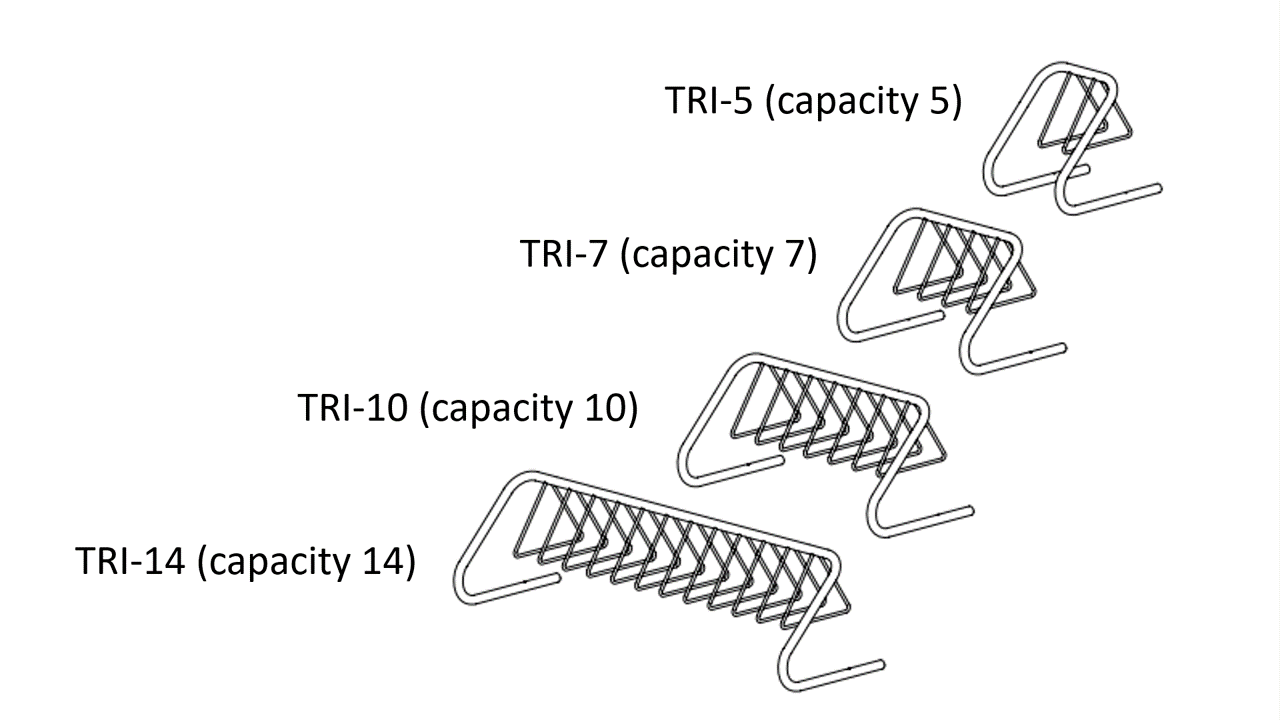

TRI-5-SF | 5-bikes | 2-3/8″ tube | 30″ L x 25″ W x 34″ H

TRI-5-FS | 5-bikes | 2-3/8″ tube | 30″ L x 38″ W x 34″ H

TRI-7-SF | 7-bikes | 2-3/8″ tube | 48″ L x 25″ W x 34″ H

TRI-7-FS | 7-bikes | 2-3/8″ tube | 48″ L x 38″ W x 34″ H

TRI-10-SF | 10-bikes | 2-3/8″ tube | 73″ L x 25″ W x 34″ H

TRI-10-FS | 10-bikes | 2-3/8″ tube | 73″ L x 38″ W x 34″ H

TRI-14-SF | 14-bikes | 2-3/8″ tube | 123″ L x 25″ W x 34″ H

TRI-14-FS | 14-bikes | 2-3/8″ tube | 123″ L x 38″ W x 34″ H

*Height measurement is from grade to top of bike rack. See CAD files below for details
